SHS3005 straight arm lorry crane

Taxonomy：crane
Click times：730
Date of release：2021-04-30
Order

Detailed introduction

Product features：
1. The section height of the boom is increased, which greatly reduces the deflection of the boom at a large working radius, and improves the load-bearing telescopic capacity;
2. The arm tube adopts 4 hexagonal welds, and the upper and lower overlap structure, the structure strength is greater, and the safety factor is higher;
3. The large-span rear outrigger improves the stability of the vehicle and the lifting capacity in the middle and long boom;
4. The main valve adopts manual proportional multi-way valve to realize compound action and improve operation efficiency;
5. Integrated control panel (engine start and stop, etc.), the operation is simpler and more reliable;
6. The winch adopts a high-speed, double-balance valve structure, and low-speed operation is more stable;
7. The working range and lifting capacity are better than similar products;
8. Standard radiator for all series;
Provide 100% qualified products and consolidate domestic and foreign markets with "four services"

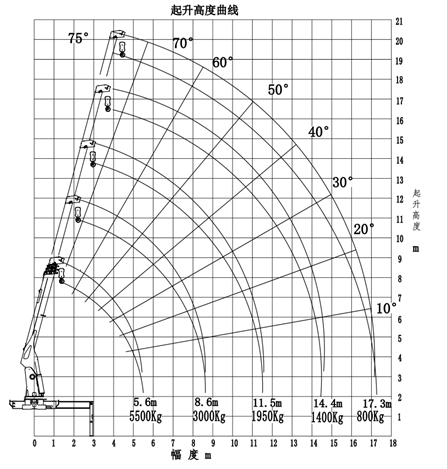

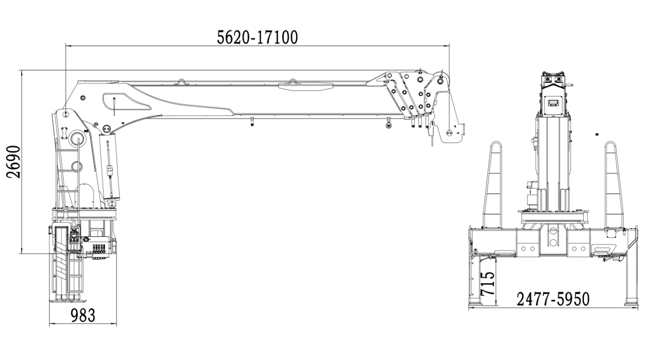

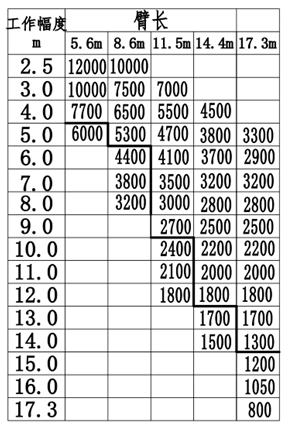

The main technical parameters and performance metrics：
Max Lifting Capacity（kg）:12000
