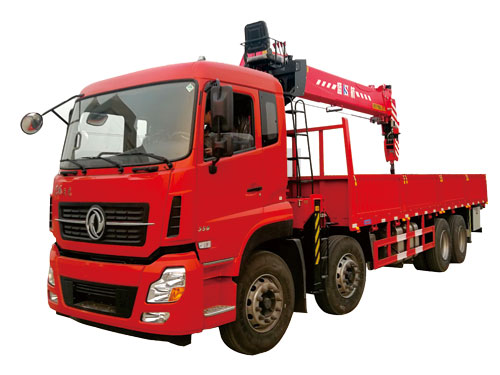

SHS360-5 straight arm lorry crane

    Product features：

    1. The section height of the boom is increased, which greatly reduces the deflection of the boom at a large working radius, and improves the load-bearing telescopic capacity;

    2. The arm tube adopts 4 hexagonal welds, and the upper and lower overlap structure, the structure strength is greater, and the safety factor is higher;

    3. The large-span rear outrigger improves the stability of the vehicle and the lifting capacity in the middle and long boom;

    4. The main valve adopts manual proportional multi-way valve to realize compound action and improve operation efficiency;

    5. Integrated control panel (engine start and stop, etc.), the operation is simpler and more reliable;

    6. The winch adopts a high-speed, double-balance valve structure, and low-speed operation is more stable;

    7. The working range and lifting capacity are better than similar products;

    8. Standard radiator for all series;

    Provide 100% qualified products and consolidate domestic and foreign markets with "four services"

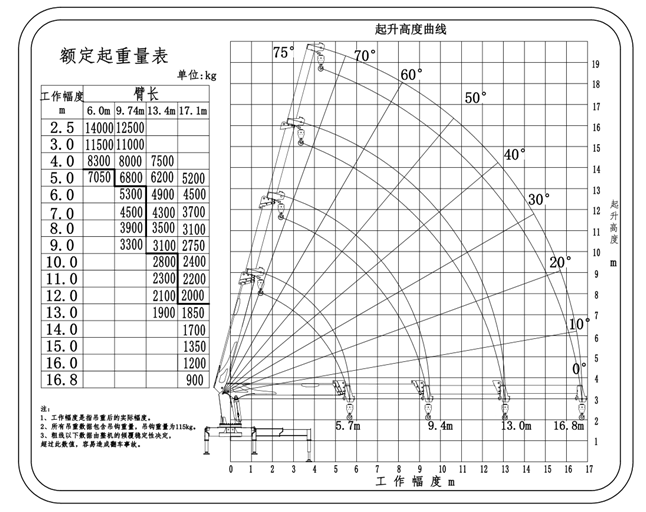

    The main technical parameters and performance metrics：

    Max Lifting Capacity（kg）:14000

     Max Lifting Moment（kN.m）:3600

     Max length of working arm（m）:19.7

     Working Height(m)：21（To the crane installation）

     Boom elevation range(°):0-75

     Slewing angle(°):360

     Outrigger span（m）:7.7

     Rated work flow（L／min）:63+40

     Weight（kg）:5900

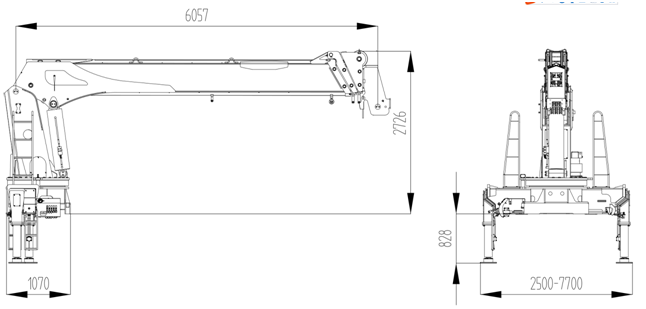

    Installation dimensions figure:
